| The quietest diesel
400 AMP welder in the world today [58dB(a)].
|
|
 |
Shindaiwa Generator Welders
are specially designed and built to suit Australian
conditions, using the latest Japanese welding technology.
- Standard from the factory fitted with VRD, CC,
CV and earth leakage.
- Can be used by single or dual welding operators.
- Will run wire feeders.
- Can be used as a 15 KVA generator.
The best combination of a 400 amp diesel generator
welder in the world today.
|
|
|

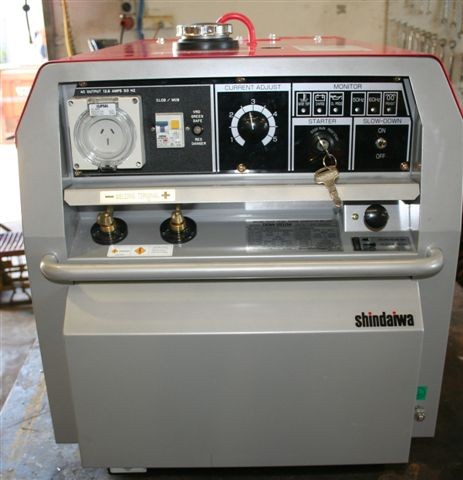

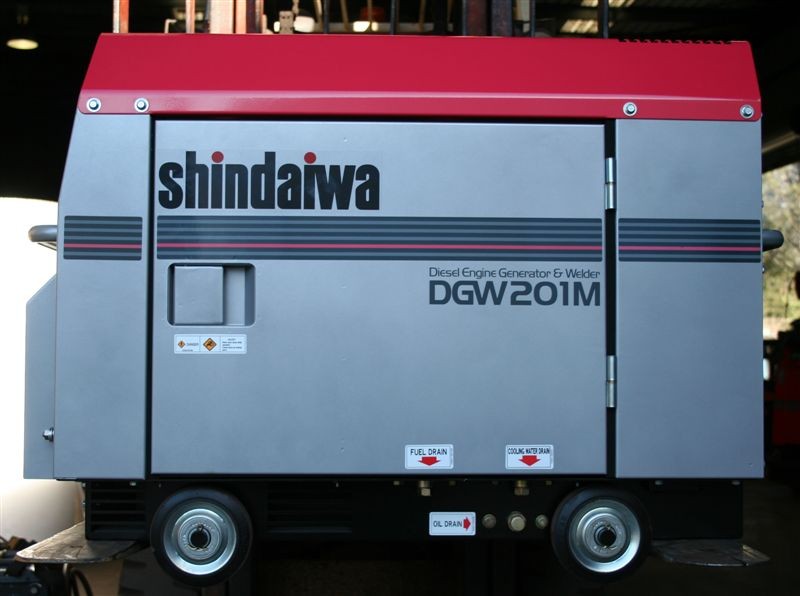

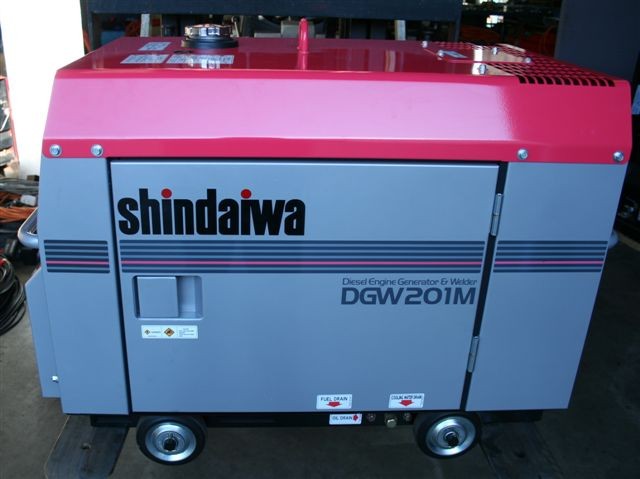

DGW201M - 220A
200 Amp welding / 3 kVA 250 VAC 50 HZ
|
Click on image for larger pic
|
|
- Quite silenced 61dB (A)

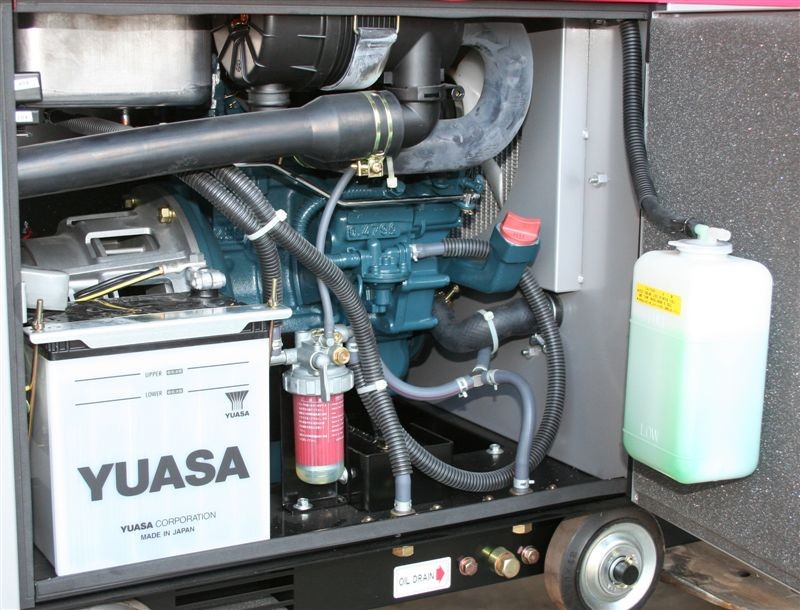

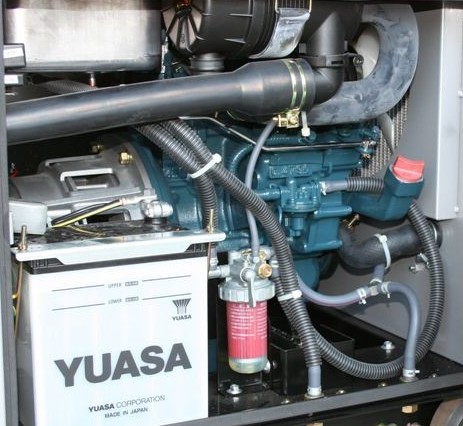

- Reliable economical water cooled Kubota Z482 - B
vertical 2 cylinder diesel engine
- Auto idle for maximum fuel savings
- Fitted with Earth leakage , Australian compliant
VRD &15 Amp 250 volt outlet

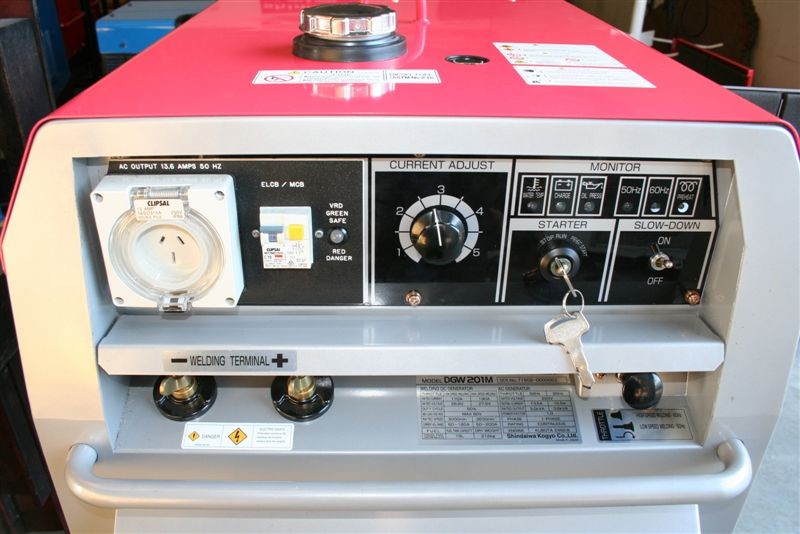

- Electronic current control (Optional remote)
- Fitted with wheels for easy movement
- 15 Liter fuel tank 9 to 11 Hr run time
- Dimensions 998MM x 603MM x 773MM
- Weight 212 Kgs
- 190 Amps @ 50% duty cycle
- Side door to allow easy servicing
- Stick welding to 4MM
- Auxiliary power 3 KVA 50 HZ
|
|
| |
|
 |
|
|
|
|
