 Portable external VRD,s


NEW PRODUCT

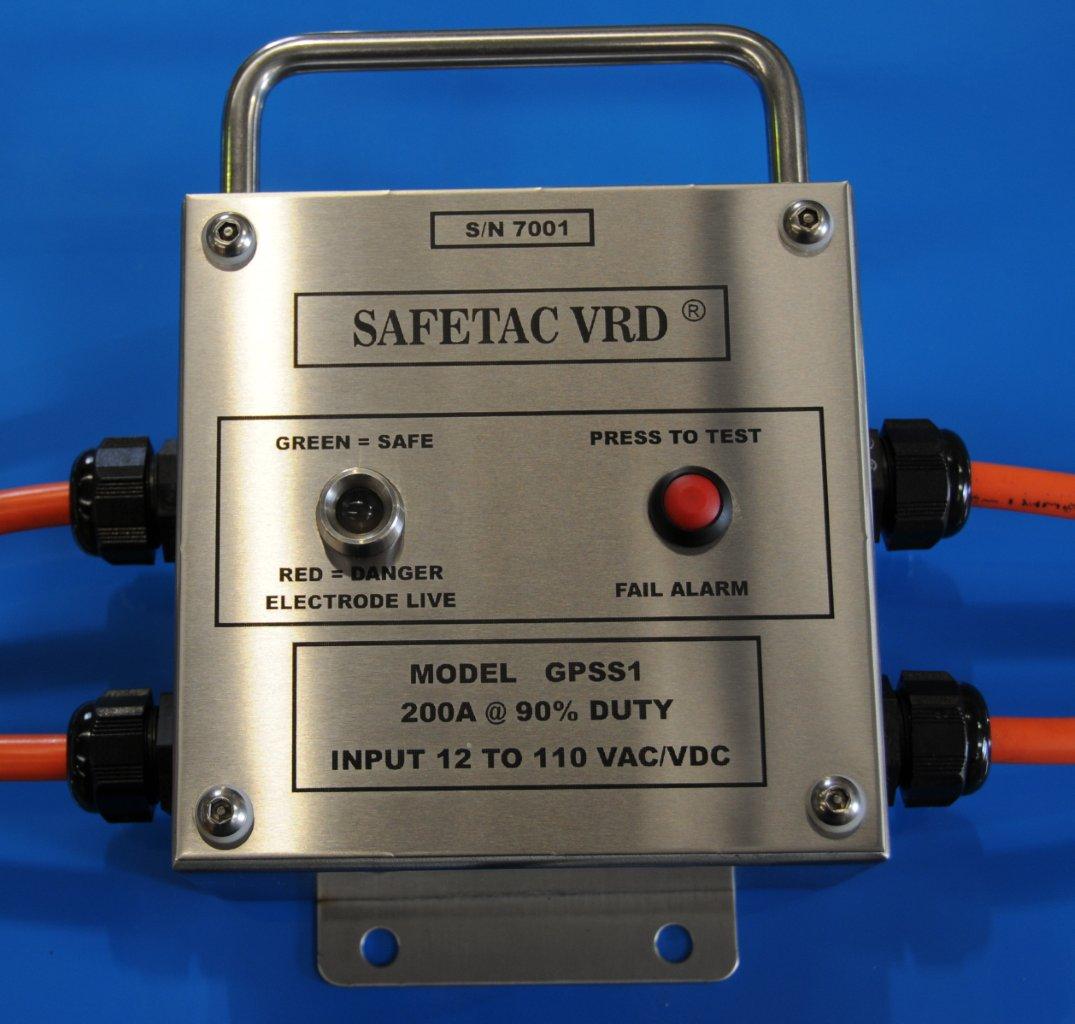

SafeTac External Portable GPSS1 (200 amp AC/DC)

  • Input volts 12 to 110 volts AC/DC & reverse polarity DC
  • Rated 200 amps@90% duty cycle
  • 1 metre x 25mm2 input & output cables
  • Constructed from 304 grade stainless steel
  • Turn off resistance 20 to 150 ohms / Turn on greater than 200 ohms
  • VRD turn on time .3 seconds software programmable to 5 seconds
  • Reduced output volts approximately 12 VDC
  • New electronics & extreme rating gas filled contactor
  • No contactor chatter works down to 20 Amps on most inverters & small engine driven welders
  • Can be permanently mounted using 8mm bolts
  • Total weight less than 5 kilo can be air bagged overnight to major cities
  • Built in fail safe test alarm ( Visual , audible upon request )
  • N.A.T.A. Certified electronics
  • Warranty 1 year RTB

For dimensions click to view PDF


SafeTac External Portable GPSS2 (250 amp AC/DC)

  • Input volts 20 to 130 volts AC/DC & reverse polarity DC
  • Rated 250 amps@100% duty cycle
  • 1 metre x 50mm2 input & output cables
  • Constructed from 304 grade stainless steel
  • Turn off resistance 20 to 150 ohms / Turn on greater than 200 ohms
  • VRD turn on time .3 seconds software programmable to 5 seconds
  • Reduced output volts approximately 12 VDC
  • Can be permanently mounted using 8mm bolts
  • Built in fail safe test alarm ( Visual , audible upon request )
  • N.A.T.A. Certified electronics
  • Warranty 1 year RTB

For dimensions click to view PDF


SafeTac External Portable GPSS4 (400 amp AC/DC)

  • Input volts 20 to 130 volts AC/DC & reverse polarity DC
  • Rated 400 amps @ 100% duty cycle
  • 1 metre x 95mm2 input & output cables
  • Fitted with 500 amp mech - connectors
  • Constructed from 304 grade stainless steel
  • Turn off resistance 20 to 150 ohms / Turn on greater than 200 ohms
  • VRD turn on time .3 seconds software programmable to 5 seconds
  • Reduced output volts approximately 12 VDC
  • Can be permanently mounted using 8mm bolts
  • Built in fail safe test alarm ( Visual , audible upon request )
  • N.A.T.A. Certified electronics
  • Warranty 1 year RTB

For dimensions click to view PDF

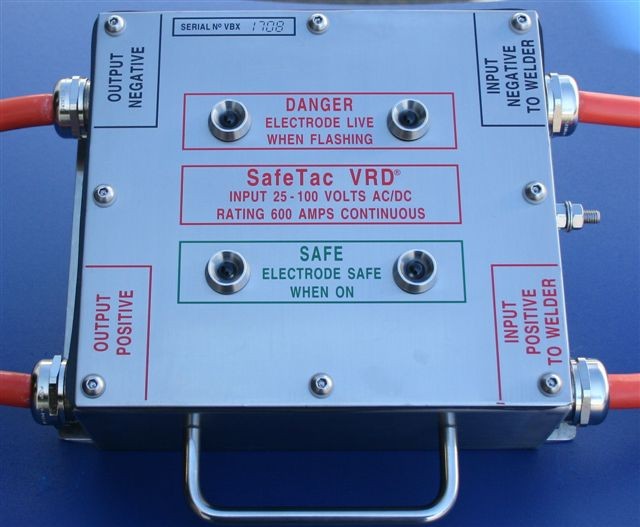

SafeTac External Portable GPSS6 (600 amp AC/DC)

  • Input volts 20 to 130 volts AC/DC & reverse polarity DC
  • Rated 600 amp @ 60% duty cycle
  • 1 metre x 95mm2 input & output cables
  • Fitted with 500 amp mech - connectors
  • Constructed from 304 grade stainless steel
  • Turn off resistance 20 to 150 ohms / Turn on greater than 200 ohms
  • VRD turn on time .3 seconds software programmable to 5 seconds
  • Reduced output volts approximately 12 VDC
  • Can be permanently mounted using 8mm bolts
  • Built in fail safe test alarm ( Visual , audible upon request )
  • N.A.T.A. Certified electronics
  • Warranty 1 year RTB




For dimensions click to view PDF

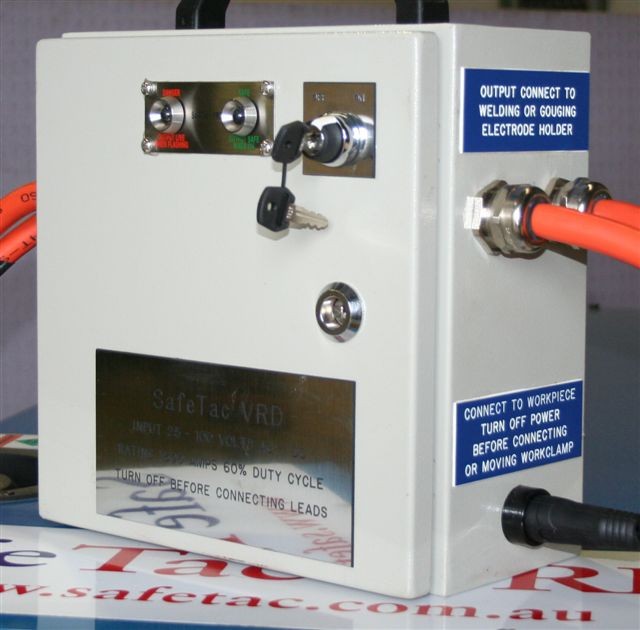

SafeTac External Portable GPSS15 (1200 amp AC/DC)

  • Input volts 20 to 130 volts AC/DC & reverse polarity DC
  • Rated 1200 amps @60% duty cycle
  • Upgradeable to 1500 amps by adding more cables
  • 2 x 1 metre x 95mm2 input & output cables
  • Constructed from power coated steel IP 66 rated enclosure
  • Turn off resistance 20 to 150 ohms / Turn on greater than 200 ohms
  • VRD turn on time .3 seconds software programmable to 5 seconds
  • Reduced output volts approximately 12 VDC
  • Can be permanently mounted using 8mm bolts
  • Built in fail safe test alarm ( Visual , audible upon request )
  • N.A.T.A. Certified electronics
  • Warranty 1 year RTB


For dimensions click to view PDF
