Deadman Switches

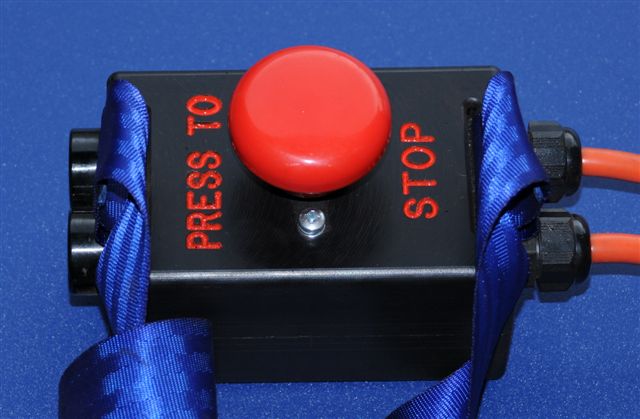

DM1-2 is an emergency cut-off switch

The DM1-2 is a dual pole (Both leads for total isolation) inline isolation switch

Suited to inverters with small dinse output terminals

Isolation is achieved by pressing down on large red button

Rated @ 200 amps 100% duty cycle

Designed for use on inverter welders up to 200 amp rating.

May also be used to isolate Lincoln LN25 work lead prior to connection or repositioning.

Constructed from UV stabilized UHMPE

1 Metre x 25mm2 input leads output via dinse plugs

Fitted With .5 Metre X 50mm carry strap

Warranty 1 year RTB

DM1-1 is an emergency cut-off switch

The DM1-1 is a single pole inline isolation switch

Suited to welders with large dinse output terminals

Isolation is achieved by pressing down on large red button

Rated @ 320 Amps 60% duty cycle

Designed for use on inverter welders up to 300 amp rating.

May also be used to isolate Lincoln LN25 work lead prior to connection or repositioning.

Constructed from UV stabilized UHMPE

1 Metre x 35mm2 input & output leads

Fitted with .5 metre x 50mm carry strap

Warranty 1 Year RTB

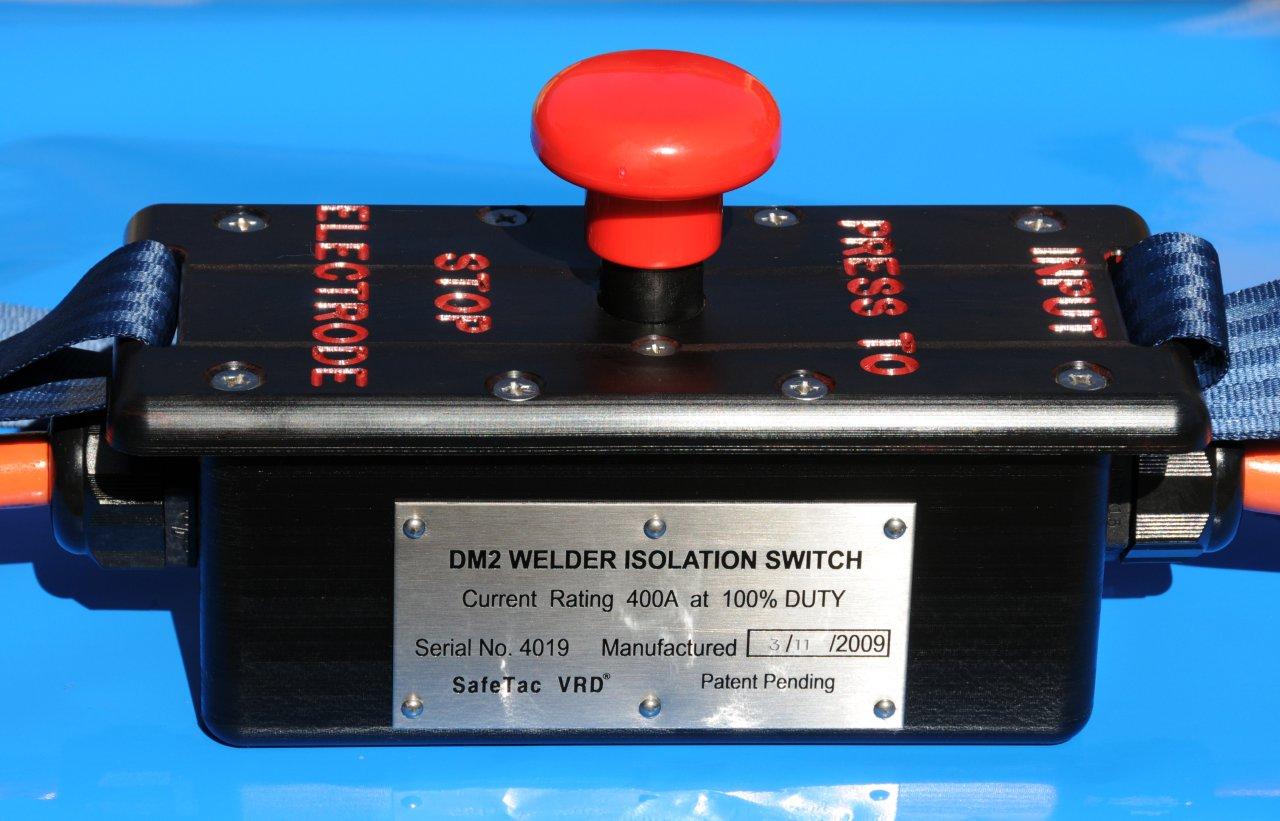

DM2 is an emergency cut-off switch

This unit is connected in series with the electrode lead

Isolation is achieved by pressing down on large red button

Rated @ 400 Amps 100% duty cycle

Constructed from UV stabilized UHMPE

1 Metre x 95mm2 input & output cables fitted with 500 Amp mech-connectors

Fitted with 1 metre x 50mm carry strap

Warranty 1 year RTB

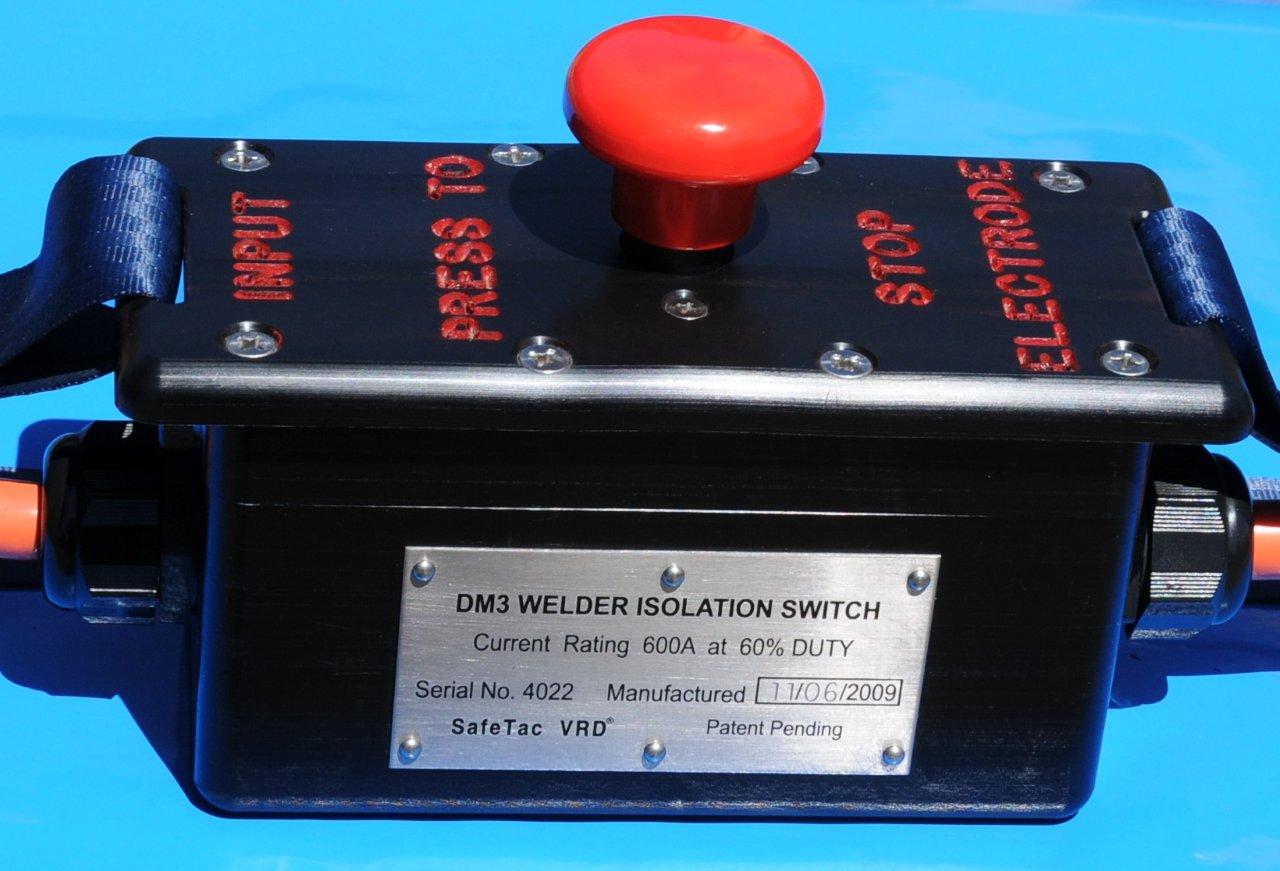

Portable 600 Amp DM3 Deadman Switch

DM3 is an emergency cut-off switch

This unit is connected in series with the electrode lead

Isolation is achieved by pressing down on large red button

Rated @ 700 Amps 60% duty cycle

Constructed from UV stabilized UHMPE

1 Metre x 95mm2 input & output cables fitted with 500 Amp mech-connectors

Fitted with 1 metre x 50mm carry strap

Warranty 1 year RTB

For dimensions click to view PDF

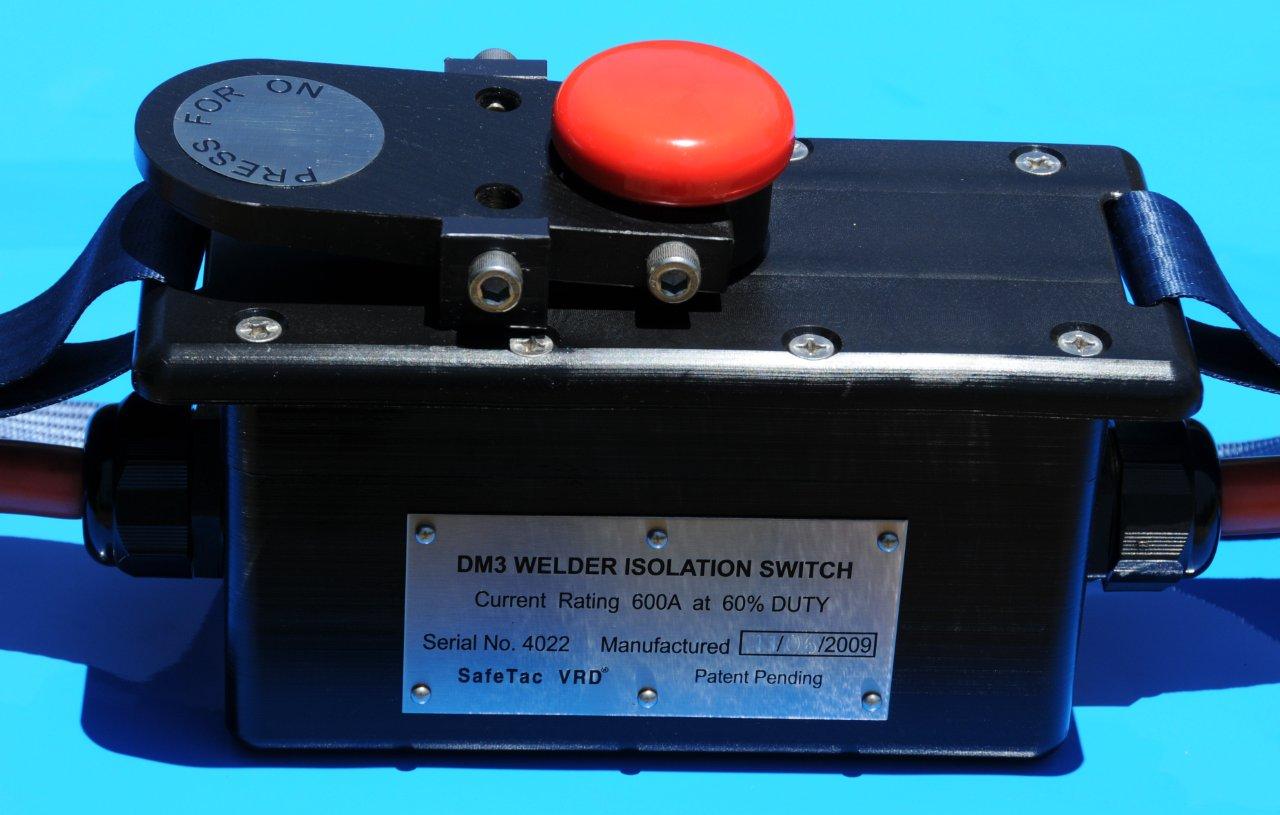

Portable DM-L Series Lever(Foot Operated) Deadman Switch

To add to new switch add -L (ie DM3-L)

Completely electronic's free operation

Use in series with electrode holder for safe voltage free rod changing operation

Isolation is achieved by pressing down on large red button

Ready to weld is achieved by pressing down on Lever marked press for on

Able to with stand severe abuse

Constructed from UV stabilized UHMPE & 316 Stainless hardware

Saves on back strain caused by bending to reset switch on current model's

Now carries Stainless ID plate to indicate Model , Size + place & Date of Manufacture

Warranty 1 year RTB
